Straight Adapter Female DKO x Female NPT
This is where Helesul DKO (Double Cone O-ring) hydraulic adapters stand out as the strategic choice for manufacturers and operators who refuse to compromise on reliability, delivering a robust solution built on versatility, superior sealing, and global compatibility.
- Technical Details
- Applications

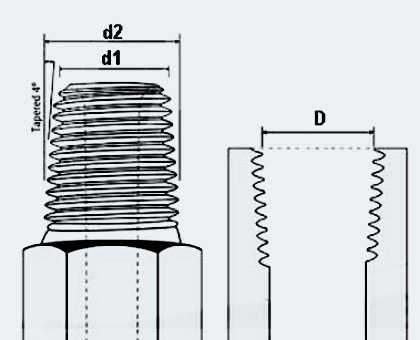

- Dimensions Table (NPT)
- Dimensions Table (DKO)
- Standards: DIN 2353 (L, S) / ISO 8434-1;
- Outside diameters: 6 mm – 42 mm (metric tubes);
- Maximum operating pressure: 420 bar (6,000 PSI);
- Operating temperature: -40°C to +120°C;
- Body material: carbon steel;
- Surface finish: trivalent zinc plating;
- O-ring: NBR 90 Shore A;
- Certification: ISO 9001.
Combine Harvesters and Agricultural Sprayers
In articulated boom circuits and hydraulic controls exposed to constant vibration and uneven terrain, DKO hydraulic adapters maintain stable sealing, mitigate soil contamination by oil, and reduce corrective interventions. The dual sealing tolerates rapid cycles and pressure spikes typical of field maneuvers, preserving system efficiency.
Tractors and Soil Preparation Implements
In cylinders of reversible plows, leveling harrows, and subsoilers, the 24° profile with O-ring provides robust connections against impacts and cyclic loads, ensuring precise actuation responses. Torque repeatability minimizes loosening and sustains productivity during extended work shifts.
Dump Trucks and Highway Trucks
In dump body and platform tipping operations, DKO connections enable safe and continuous performance, maintaining total sealing throughout repetitive cycles. High torque resistance helps preserve assembly integrity after periodic maintenance and inspections in road fleets.
Side Mowers and Sweepers
Exposed to dust, debris, and thermal variations, articulated arm systems benefit from the resilient O-ring sealing and conical seat, reducing micro-leaks and maintaining stable pressure. This extends maintenance intervals and optimizes equipment availability.
Presses and Compactors
In machines with constant high pressure, dual sealing prevents progressive fluid losses that degrade force and speed. The result is more consistent cycles, lower oil consumption, and improved hourly output, especially in continuous industrial operations.
|
|
Nominal Size |
External Thread (Male) [mm] |
External Thread (Male) [mm] |
Internal Thread (D) [mm] |
|
Thread End (d1) |
Thread Midpoint (d2) |
|||
|
1/8"-27 |
9,9 |
10,2 |
8,6 |
|
|
1/4"-18 |
13,2 |
13,6 |
11,4 |
|
|
3/8"-18 |
16,6 |
17,1 |
15 |
|
|
1/2"-14 |
20,7 |
21,3 |
18,6 |
|
|
3/4"-14 |
26 |
26,6 |
20,6 |
|
|
1"-11,5 |
32,5 |
33,3 |
24,1 |
|
|
1.1/4"-11,5 |
41,2 |
42 |
30,3 |
|
|
1.1/2"-11,5 |
47,3 |
48,1 |
39 |
|
|
2"-11,5 |
59,3 |
60,1 |
44,9 |
 |
Nominal Sizer |
Tube [mm] |
External Thread (d) [mm] |
Internal Thread (D) [mm] |
|
|
|
Light Series |
Heavy Series |
|
|
|
|
M12x1,5 |
6 |
- |
12 |
10,4 |
|
|
M14x1,5 |
8 |
6 |
14 |
12,4 |
|
|
M16x1,5 |
10 |
8 |
16 |
14,4 |
|
|
M18x1,5 |
12 |
10 |
18 |
16,4 |
|
|
M20x1,5 |
- |
12 |
20 |
18,4 |
|
|
M22x1,5 |
15 |
14 |
22 |
20,4 |
|
|
M24x1,5 |
- |
16 |
24 |
22,4 |
|
|
M26x1,5 |
18 |
- |
26 |
24,4 |
|
|
M30x2 |
22 |
20 |
30 |
27,8 |
|
|
M36x2 |
28 |
25 |
36 |
33,8 |
|
|
M42x2 |
- |
30 |
42 |
39,8 |
|
|
M45x2 |
35 |
- |
45 |
42,8 |
|
|
M52x2 |
45 |
38 |
52 |
49,8 |
|
In general, yes, thanks to the metric and UNF options and the use of adapters when necessary. Check the thread/port pair and the machine pattern.
Fewer microleaks, faster assembly and less rework, which translates into more available machines and lower fluid consumption throughout the life cycle.
DKO (Double Cone O-ring) adapters use a double O-ring sealing system, while traditional JICs have only one sealing cone. The DKO system reduces leaks by up to 98% and offers a useful life 3 times longer, with tolerance to multiple assembly and disassembly without loss of efficiency.
NPTF has tighter tolerance and can seal without sealant in fuels. For hydraulics, NPT with PTFE tape offers better cost-benefit and ease of maintenance.
Use PTFE tape if the connection will be retightened periodically. Prefer anaerobic sealant for permanent sealing and greater vibration resistance.
The conical geometry causes the sides of the thread to compress against each other as it is tightened, creating a metallic barrier that is complemented with PTFE tape or anaerobic sealant.
In agricultural hydraulic circuits, seal failures can halt a harvester during peak harvest season and drive up maintenance costs. The dual-sealing system with O-ring effectively eliminates leaks even under intense vibration and pressure spikes, reducing unplanned downtime and fluid losses by up to 95% when installed per specifications.
The 24° self-centering cone speeds up assembly by up to 40% compared to conventional connections, minimizes rework, and enhances torque repeatability.
Helesul DKO hydraulic adapters (Double Cone O-ring) are engineered for high-reliability sealing in high-pressure hydraulic systems, combining a 24° self-centering cone and O-ring for consistent performance in agricultural machinery and road applications.
With robust construction, they cut leaks, simplify installation, and boost equipment uptime even under vibration, intense cycles, and harsh environments.
All Helesul hydraulic adapters are manufactured to ISO, SAE, and DIN standards, ensuring interchangeability, safety, and predictable field performance.
